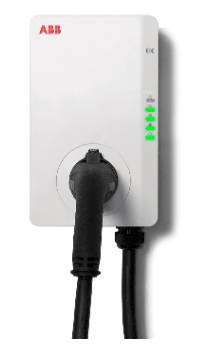

ABB AC Wallbox (3 kW - 22 kW)

ABB AC wallbox

The ABB AC Wallbox offers the best value among available chargers on the market. Designed with connectivity and smart functionality, it offers the most optimal charge today and in the future.


It features an easy home charging that blends in perfectly with daily living. Just like the full line of EV charging products offered by ABB, the wall charger has undergone rigorous testing and evaluation to the highest safety standards.


  • IEC standard compliant
  • Single phase up to 7.4 kW / 32 A
  • Three phase up to 22 W / 32 A
  • Type 2 connectors
Enquire Now

Product Features

A line drawing of a hand holding a diamond.

Load management

  • Build-in energy meter
  • Set up for external energy meter integration for dynamic load management
  • Ready for integration with advanced smart building energy system
A shield with a check mark inside of it.

Built-in safety

Both the ABB’s business and the Terra AC wallbox is built with safety in mind. The ABB AC charger and all products offered by ABB have undergone rigorous testing and evaluation to the highest safety standards.



  • Overcurrent
  • Overvoltage and undervoltage
  • Ground fault
  • Surge protection
A line drawing of a gas pump with a lightning bolt and a plug.

Connectors

The ABB AC Wallbox includes the following connectors:



  • Type 1 and type 2 cable
  • Type 2 socket with or without shutter
  • No need of extra hook, attached cable can be wrapped around the charger
A line drawing of an electric car with a plug attached to it.

Design

The ABB AC Wallbox is easy to install and has a space-saver design with a built-in meter for monitoring energy use.


  • IEC variants:
  • Single phase up to 7.4 kW / 32A
  • Three phase up to 22 kW / 32 A
  •  UL variants up to 19 kW / 80 A
  • NEMA 3 enclosure
  • All variants: IP54, IK10
A gear is surrounded by four arrows in a circle.

Connectivity

The ABB AC Wallbox is designed with connectivity and smart features so you can conveniently charge your car at home whenever you want.


  • Ethernet RJ45
  • Bluetooth
  • Wifi
  • 4G variants
  • RS485 for connection to energy meter
  • OCPP 1.6
  • Authentication via ChargerSyncTM app and portal or RFID
  • Configuration through TerraConfig app and portal
A pair of gears with arrows pointing in opposite directions.

Configurations

  • Low power models: ABB 24 (20 kW), ABB 54 (50 kW)
  • High power models: ABB 94 (90 kW), ABB 124 (120 kW), ABB 184 (180 kW)
  • European, US, Japan and China versions available, for 400 V, 480 V and
  • 380 V AC grid inputs
  • Many combinations of the open protocols CCS, CHAdeMO, GB/T and AC charging
  • Continuous current output up to 125 A (ABB 24/54) and 300 A (ABB 94/124/184)
  • Different cable lengths available and optional cable management system

HAVE ENQUIRIES ABOUT THE ABB AC WALLBOX?

GES Greenera is an accredited designer and installer of ABB EV Charging Solutions in Melbourne. Get in touch with us today.
